Galaxy

Description

Galaxy is a free, open-source system for analyzing data, authoring workflows, publishing tools, and more. It is especially popular in the bioinformatics community, but is suitably for many other kinds of analysis workflows.

Galaxy allows you to define workflows that take certain datasets as input, and generate new datasets as output, in a user-friendly way. Workflows consists of tools: re-usable scripts that are published by the Galaxy community, or that you can develop yourself.

Using this workspace type, your entire research group can launch Galaxy instances on demand. You can use it, for example, to run workflows when new data periodically becomes availalbe. There is no need to maintain a permanent Galaxy server, with all associated costs and complexity: simply start Galaxy on demand, and remove the workspace when you no longer need it!

See here for an example of how Galaxy is being used to process bioinformatics data at UU!

Feel free to contact us if you are curious about how Galaxy on ResearchCloud can help your research group.

Flavours

There are two very similar workspace types that you can use:

  • Galaxy (supported by SURF, co-developed by UU and SURF, publically available in the catalog)
  • Galaxy UU (supported by UU, request access from the catalog)

In most cases, you can simply use the Galaxy catalog item supported by SURF. The Galaxy UU catalog item has a few additional features that may come in handy.

Creation

Create a storage volume

If desired, first create a storage volume before creating the workspace.

See the Getting started page for more info about how and why to create a storage volume.

To use a storage unit, you currently need to use the Galaxy UU flavour. When working with large datasets, using a storage unit is advised.

Remember that you are responsible for making backups of any data yourself! Although data on a storage unit will not be deleted when you delete the workspace, it can still become corrupt. So if it is important to your work, make sure to make periodical (e.g. daily or weekly) backups of your projects.

Create a workspace

In the Research Cloud portal click the ‘Create a new workspace’ button and follow the steps in the wizzard.

See the workspace creation manual page for more guidance.

Choosing the right hardware: depending on the workflows you want to run, Galaxy may require significant computational resources. Although you should not simply select the most hardware available (see responsible use), make sure your workspace has enough CPUs. At least two CPUs are advisable for simple workflows, but more may be necessary. If you are unsure, please contact us.

Alternatively, you can start a Galaxy workspace with only two CPUs, and offload the computational load to a Pulsar workspace that has more resources. This means you can have a relatively light-weight Galaxy workspace running, pause your Pulsar workspace (thereby avoid incurring unnecessary costs), and activate Pulsar only when you need to scale up your computational power. See the Pulsar on ResearchCloud documentation, or contact us for advise!

Usage

When you log in to this workspace, the Galaxy web app will open automatically.

For usage instructions, see the various official Galaxy training manuals.

Access

This workspace can be accessed via the yellow ‘Access’ button, or by opening the URL listed in the dashboard in your browser. Any member of the collaboration can login to the workspace using Single-Sign On.

Command line access

You can also login to the workspace via the commandline, using ssh. This may be useful to debug Galaxy or create backups.

Admin users will also be able to use sudo (after entering their time-based password).

Galaxy UU

The Galaxy UU workspace type is based on the standard Galaxy catalog item, but has some extra features:

To use Galaxy UU, simply request access.

Tools for transferring data from Yoda

The Galaxy UU comes with Galaxy tools that you can use to import and export files to Yoda (or other iRODS servers) in your workflows. The tools are available under the ‘iBridges’ section. See the tool documentation for how to use it.

Note: when not using Galaxy using the Galaxy UU workspace type, you can also install the ibridges tool from the Galaxy toolshed.

Automatically import tools and workflows

When creating a Galaxy UU workspace, in the final step you will be asked if you want to import custom tools (under “Interactive Parameters”). This also allows you to import custom workflows. These tools and workflows will be available when your workspace after your workspace is created.

This feature allows you to storage workflows and define required tools in a separate git repository, so that when you create a new workspace after having deleted a previous one, you can easily restore all your workflows.

Using this feature requires having a public git repository. In this repository, you should:

  • put tool files in the tools subdirectory (this should contain .yml files that refer to Galaxy tools)
  • put workflow files in the workflows subdirectory (this should contain .ga files that you can save by exporting a workflow from Galaxy).

See this sample repository.

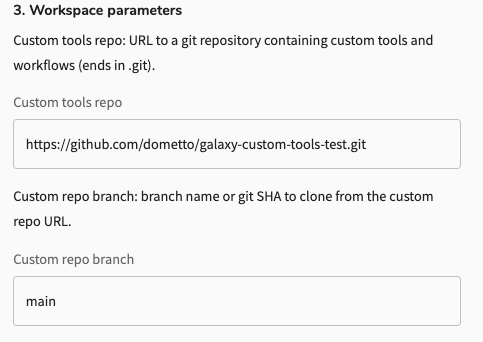

In the “Interactive Parameters” section, you can fill in the URL to your git repo and the branch that should be used (main by default):

Use a storage unit

When creating a Galaxy UU workspace, in the final step you will be asked where Galaxy’s data should be stored on the workspace (under “Interactive Parameters”).

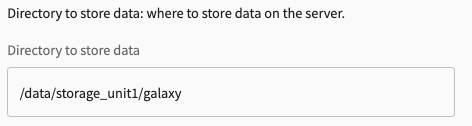

If you want to use your external storage, set this to /data/name_of_your_storage/galaxy:
